Laser Innovations offers sales and complete laser service of Coherent Ring Dye & Ti: Sapphire laser system.  We stock Coherent replacement parts for most models.  If your Coherent laser is in need of service, or you desire to purchase a Ring Dye or Ti: Sapphire laser system, please call for a quotation.

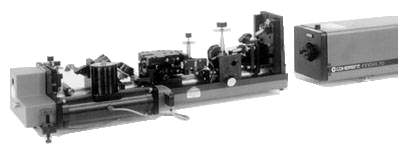

Coherent Ring Dye Laser

Dye Models Serviced


  • Coherent 599-OEM
  • Coherent 599-01
  • Coherent 599-03
  • Coherent 599-21
  • Coherent 699-01 Broadband Ring Dye Laser
  • Coherent 699-02 Non-Scanning Single-Frequency Ring Dye Laser
  • Coherent 699-05 Passively Stabilized, Scanning Single-Frequency Ring Dye Laser
  • Coherent 699-21 Actively Stabilized, Scanning Single-Frequency Ring Dye Laser
  • Coherent 899-01 Broadband Ring Dye Laser
  • Coherent 899-05 Passively Stabilized, Scanning Single-Frequency Ring Dye Laser
  • Coherent 899-21 Actively Stabilized, Scanning Single-Frequency Ring Dye Laser
  • Coherent 899-29 AutoScan™ II



[Return to Top]



Coherent Ring Dye Laser

Dye Laser Systems and Dye Utility Modules Available for Purchase


  • Coherent 599-OEM
  • Coherent 599-01
  • Coherent 599-03
  • Coherent 599-21
  • Coherent 699-01 Broadband Ring Dye Laser
  • Coherent 699-02 Non-Scanning Single-Frequency Ring Dye Laser
  • Coherent 699-05 Passively Stabilized, Scanning Single-Frequency Ring Dye Laser
  • Coherent 699-21 Actively Stabilized, Scanning Single-Frequency Ring Dye Laser
  • Coherent 899-01 Broadband Ring Dye Laser
  • Coherent 899-05 Passively Stabilized, Scanning Single-Frequency Ring Dye Laser
  • Coherent 899-21 Actively Stabilized, Scanning Single-Frequency Ring Dye Laser
  • Coherent 899-29 AutoScan™ II

[Return to Top]



Coherent Ring Dye Laser

General Data and Specifications


Coherent 899-01 Broadband Ring Laser

    The Coherent 899-01 uses a 3-plate birefringent filter.  It is tunable from 370 nm to > 1 micron.  This Broadband Ring Laser maintains line widths of approximately 2 GHz in dye and < 2 GHz in Ti:S.  Maximum tuning range and high power are achieved by using uncoated intracavity elements and mounting them at Brewster's angle.  The Coherent 899-01 Broadband Ring Laser delivers high efficiency at a wide range of pump powers by using a unique variable focus resonator.

Coherent 899-05 Passively Stabilized, Scanning Single Frequency Ring Laser

    The Coherent 899-05 reduces the line width to 20 MHz RMS in dye operation and 10 MHz RMS with Ti:S.  It achieves this by using the 7230 ICA Intracavity Etalon Assembly, a galvanometer mounted thin etalon and servo-controlled thick etalon.  The Model 7135 length-changing, galvanometer driven, vertex-mounted Brewster Plate provides continuous scanning operation over 30 GHz. Full electronic control of the 7230 ICA and its scanning operations are provided by the modular 899 Ring Laser Control Unit.

Coherent 899-21 Actively Stabilized, Scanning Single-Frequency Ring Laser

    The Coherent 899-21 has all the functions and features of the Coherent 899-05.  However, it also includes Coherent's patented AutolockTM frequency stabilization system for line widths < 500 KHz RMS. To stabilize the cavity length of the Coherent 899-21 low frequency error signal corrections to the Vertex Brewster Plate and high frequency error signal corrections to a PZT mounted fold mirror are provided by a single reference cavity and ancillary optics.

Coherent 899-29 Autoscan™ II

    The Coherent 899-29 Autoscan™ II system incorporates the full functions of the Model 899-21.  It also includes complete computer control of all laser operations. The 899-29 Autoscan II system provides calibrated, seamless spectral-scans in the region of 450 to 900 nm over a selectable range up to 10 THz and simultaneous multiple channel data acquisition. The system comes with an integrated wavelength meter which has a specified absolute accuracy of +- 200 MHz and reproducibility of +-50 MHz. The Coherent 899-20 Autoscan II includes PC compatible computer, interface card, and software.



Specifications are for reference only and do not constitute warranty specifications on serviced lasers by Laser Innovations.

[Return to Top]



Laser Dye Sources


www.exciton.com

Exciton, Inc.
P.O. Box 31126
Overlook Station
Dayton, Ohio 45431
Phone (513) 252-2989
Fax (513) 258-3937

[Return to Top]



Technical Questions Pertaining to Coherent Ring Dye Lasers


Please send all questions to the following E-mail address: information@coherentlaser.com
