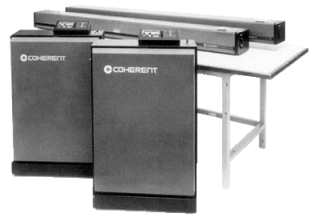

Innova 100 - Large Frame Ion Laser

Laser Systems Serviced
  • Coherent Innova 100-10 Argon Ion Laser System
  • Coherent Innova 100-15 Argon Ion Laser System
  • Coherent Innova 100-18 Argon Ion Laser System
  • Coherent Innova 100-20 Argon Ion Laser System
  • Coherent Innova 100-25 Argon Ion Laser System
  • Coherent Innova 100-10 UV Argon Ion Laser System
  • Coherent Innova 100-15 UV Argon Ion Laser System
  • Coherent Innova 100-18 UV Argon Ion Laser System
  • Coherent Innova 100-20 UV Argon Ion Laser System
  • Coherent Innova 100-25 UV Argon Ion Laser System
  • Coherent Innova 100-2K Krypton Ion Laser System
  • Coherent Innova 100-3K Krypton Ion Laser System

[Return to Top]



Innova 100 - Large Frame Ion Laser

Laser Systems Available for Purchase


  • Coherent Innova 100-10 Argon Ion Laser System
    • 10.0 Watt,  1 year / 2000 hour warranty on Innova Plasma Tube
  • Coherent Innova 100-15 Argon Ion Laser System
    • 15.0 Watt,  1 year / 2000 hour warranty on Innova Plasma Tube
  • Coherent Innova 100-18 Argon Ion Laser System
    • 18.0 Watt,  1 year / 2000 hour warranty on Innova Plasma Tube
  • Coherent Innova 100-20 Argon Ion Laser System
    • 20.0 Watt,  1 year / 2000 hour warranty on Innova Plasma Tube
  • Coherent Innova 100-25 Argon Ion Laser System
    • 25.0 Watt,  1 year / 2000 hour warranty on Innova Plasma Tube
  • Coherent Innova 100-10 UV Argon Ion Laser System
    • 10.0 Watt / 0.5 Watt UV,  1 year / 2000 hour warranty on Innova Plasma Tube
  • Coherent Innova 100-15 UV Argon Ion Laser System
    • 15.0 Watt / 1.5 Watt UV,  1 year / 2000 hour warranty on Innova Plasma Tube
  • Coherent Innova 100-18 UV Argon Ion Laser System
    • 18.0 Watt / 2.0 Watt UV,  1 year / 2000 hour warranty on Innova Plasma Tube
  • Coherent Innova 100-20 UV Argon Ion Laser System
    • 20.0 Watt / 2.5 Watt UV,  1 year / 2000 hour warranty on Innova Plasma Tube
  • Coherent Innova 100-25 UV Argon Ion Laser System
    • 25.0 Watt / 4.0 UV,  1 year / 2000 hour warranty on Innova Plasma Tube
  • Coherent Innova 100-2K Krypton Ion Laser System
    • 2.0 Watt,  1 year / 2000 hour warranty on Innova Plasma Tube
  • Coherent Innova 100-3K Krypton Ion Laser System
    • 3.0 Watt,  1 year / 2000 hour warranty on Innova Plasma Tube

[Return to Top]

Innova 100 - Large Frame Ion Laser

General Data


Power supply dimensions

Height

94.0 cm
37.00 in

Width

61.0 cm
24.00 in

Length

38.1 cm
15.0 in

Weight

136 Kg
300 lbs

Laser head dimensions

Height

19.8 cm
7.81 in

Width

20.3 cm
8.0 in

Length

208.9 cm
82.25 in

Weight

85 Kg
186 lbs

Remote module dimensions

Height

7.37 cm
2.9 in

Width

16.51 cm
6.5 in

Length

24.13 cm
9.5 in

[Return to Top]



Innova 100 - Large Frame Ion Laser

Specifications


System Parameter Specifications

Bore configuration

Copper-tungsten disks w/ one piece ceramic envelope

Plasma Tube Cooling

Conductively water cooled

Resonator Construction

Super Invar

Cavity specification

Flat high reflector, long radius output coupler

Output Polarization

100:1 Electric Vector Vertical

Cavity length:

1923 mm (75.7 in) All-lines / 1953 mm (76.9 in) with Mdl 434 prism

Excitation

Current regulated DC

Input voltage

480 +/- 10% VAC 50 or 60 Hz, 3 phase with ground, Wye or Delta configuration

Maximum input current:


Argon

60 Amps per phase at 480 VAC

Krypton

70 Amps per phase at 480 VAC

Maximum tube discharge current:


Innova 100-10

45 Amps

Innova 100-12,15

50 Amps

Innova 100-15UV,18,20

55 Amps

Innova 100-K2,K3

65 Amps

Water flow rate

22.7 liters/minute (6 gallon/minute)

Water incoming temperature: min./ max.

10oC (50oF) / 35oC (95oF)

Water pressure: min. / max.

2.47 kg/cm2 (35 psi) / 4.23 kg/cm2 (60 psi)

Specifications are for reference only and do not constitute warranty specifications on serviced lasers by Laser Innovations.

[Return to Top]


Performance Parameter Specifications

Beam diameter(1):
UV
Green
Red


1.6 mm
1.9 mm
2.0 mm

Beam divergence (half angle)(1):
UV
Green
Red


0.32 mrad
0.50 mrad
0.39 mrad

Long-term power stability(2):


Current Regulation

+/- 3.0%

Light Regulation     +/- 0.5%

Optical noise(3):


Current Regulation

+/- 0.5% RMS

Light Regulation

+/- 0.3% RMS

(1) Beam diameter and divergence are specified for 514.5 nm at the output coupler.
     The divergence spec is 0.4 mrad.
(2) Maximum peak variation (over any 30 minute period with a 2 hour warm up).
(3) Measurement is made with wideband photo diode driving a resistive load.
    The noise voltage is measured with an RMS voltmeter with 10 Hz to 2 MHz bandwidth.
    The specifications for 514.5 nm/647.1 mm at specified output power.

Specifications are for reference only and do not constitute warranty specifications on serviced lasers by Laser Innovations.

[Return to Top]


Output Power (TEMoo) Specifications

Argon Wavelength (nm)

Innova 100-10

Innova 100-12

Innova 100-15

Innova 100-18

Innova 100-20

Multi-line

10 W

12 W

15 W

18 W

20 W

528.7

800 mW

1.0 W

1.3 W

1.5 W

1.7 W

514.5

4.5 W

5.5 W

6.5 W

7.5 W

8.5 W

501.7

750 mW

1.0 W

1.4 W

1.5 W

1.7 W

496.5

1.2 W

1.5 W

2.0 W

2.5 W

2.8 W

488.0

3.5 W

4.5 W

5.5 W

6.0 W

6.5 W

476.5

1.5 W

1.8 W

2.3 W

2.5 W

2.8 W

472.7

400 mW

700 mW

800 mW

1.0 W

1.1 W

465.8

200 mW

500 mW

600 mW

700 mW

780 mW

457.9

600 mW

800 mW

1.0 W

1.2 W

1.4 W

454.5

200 W

300 mW

400 mW

700 mW

780 mW

UV Multiline

800mW

1.3 W

2.0 W

2.5 W

3.0 W

Krypton Wavelength (nm)

Innova 100-K2

Innova 100-K3

799.3 / 793.1

200 mW

300 mW

752.5

800 mW

1.2 W

676.4

600 mW

900 mW

647.1

2.0 W

3.5 W

568.2

800 mW

1.1 W

530.9

1.0 W

1.5 W

520.8

450 mW

700 mW

482.5

250 mW

400 mW

476.2

250 mW

400 mW

468.0

400 mW

500 mW

415.4

150 mW

275 mW

413.1

1.2 W

1.8 W

406.7

600 mW

900 mW

UV Multiline

1.5 W

2.0 W

Single line powers for Argon lasers are specified at 514.5 and 488.0 nm only.  For Krypton lasers the specified lines are 676.4 nm and 647.1 nm.  Other powers indicated are nominal and may require special optics.

Specifications are for reference only and do not constitute warranty specifications on serviced lasers by Laser Innovations.

[Return to Top]
